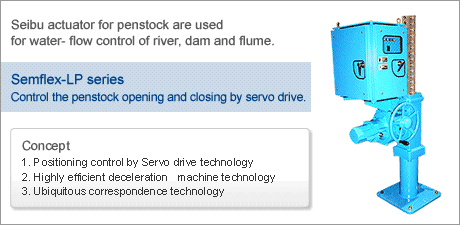

Well-shaped externals（Small, Light, and Compact）
 Small, Light, and Compact design.
（50% lighter than previous type.）
The installation space has been minimized without spoiling an environmental fine sight.
All wires are built into the machine.
（There is no exposing wire.）
|
|
Quick opening and closing
The opening and closing speed can be three times and programmable.
In emergency , high-speed closing is possible.
At first it opens slowly, and later becomes high-speed (1.0m/min).
When it is closing, high-speed re-try mode (to remove the obstacle by the repetition of opening and closing at the position) and flushing mode (to clean the bottom of the penstock by high-velocity water flow of narrow bottom space) are available as standard function. |
|
Easy maintenance（Reduction in life cycle cost）
 The oil exchange is concentrated in one place, and the amount of wasted oil become 1/10.
Reliability improved greatly according to the parts become 1/5 by simple design. |
|
Simple＆Ubiquitous（Corresponds with communication facilities）
Immediate operation just by plugging in. (Built-in control panel is standard）
Superb reliability through all-in-one design.
Capable of easy connection to various telecommunication systems.（option） |
|
 |
 |
|
Complying Standards
Technological dam and weir facilities standard (draft) conforming.
Hydraulic gate and penstock technological standard. |
|
Standard Functions
1. Electric and manual opening and closing.
2. Overload protection function.
3. Self‐descending function.
4. Lock function for preventing mischief. (At manual handle, self-descending lever.)
5. Reliable braking function with double braking mechanism.
6. Control board with heat shield plate.
7. Controller’s door with lock key. |
|
Controller specifications
| Input power supply |
3 phase AC200V～230V +10～15%, 50-60Hz |
| Ambient temperature |
-10～50℃(using space heater) |
| Preservation temperature |
-25℃～85℃（cannot be operated out of the ambient temperature） |
| Humidity |
90％RH or less（also not dewiness） |
| Main control |
PLC con |
| Motion cntorl |
Speed ＆ position control by servo |
| Positional detection |
It depends on the output axis encoder. |
| Operation |
Operation on machine side with push-button (opening, closing, and stop) Operation by remote input (opening, closing, and stop) |
| Display |
Operation display (opening, closing and alarm ) and opening position display(cm) by liquid crystal indicator, Waning buzzer |
| Insutruction |
Closing position（starting point）, the middle position, opening position, checking position etc. can be freely set up. |
| Dynamic brake |
Action at servo power-off. |
| Open time position memory |
Backup of position data with battery when main power supply is off. |
| Protection function |
Over-torque, Servo, PLC, Battery, Controller protection by displaying the alarm. |
|
|
Mechanical specifications ＆ Dimensions
| Semflex-LP series |
LP20S |
LP30S |
LP50S |
LP75S |
LP100S |
| LP20W |
LP30W |
LP50W |
LP75W |
LP100W |
| Loading Ability（KN） |
20 |
30 |
50 |
75 |
100 |
| Operating speed |
0～1.0m/min（freely set up ＆ programable） |
| Self-descending Speed |
Less than 3.0m/min（depend on the condition） |
| manual operation force |
Less than 100N |
| Ambient temperature |
- 10℃ ～ 50℃（using space heater） |
| Protection structure |
IP55（JIS C9020 IEC529） |
| Weight (Kg) : S type |
300 |
340 |
494 |
695 |
915 |
| A |
650 |
660 |
768 |
866 |
950 |
| B |
500 |
500 |
520 |
550 |
570 |
| C（S type） |
209 |
209 |
265 |
318 |
385 |
| D |
250 |
273 |
342 |
363 |
409 |
| E |
353 |
353 |
386 |
452 |
496 |
| F |
300 |
300 |
314 |
366 |
373 |
| G |
160 |
160 |
160 |
160 |
250 |
| H×H |
500 |
500 |
500 |
600 |
600 |
| I×I |
400 |
400 |
400 |
500 |
500 |
| J |
22 |
22 |
22 |
28 |
28 |
| K |
1615 |
1615 |
1599 |
1635 |
1700 |
| L |
826 |
844 |
850 |
801 |
850 |
| M |
770 |
770 |
770 |
710 |
710 |
| N |
1061 |
1061 |
1085 |
1019 |
1074 |
| O |
more than
1000 |
more than
1000 |
more than
1150 |
more than
1270 |
more than
1300 |
| 4--ФP（Hole size） |
Ф28 |
Ф28 |
Ф28 |
Ф28 |
Ф34 |
|
|
External drawing
1. For improvement of performance, design or outer dimensions are subject
to change without notice.
2. The turn direction of the manual operation handle makes open（rising）
the standards with clockwise. |
|
|
|
