EDM Product Information/Cutting Samples

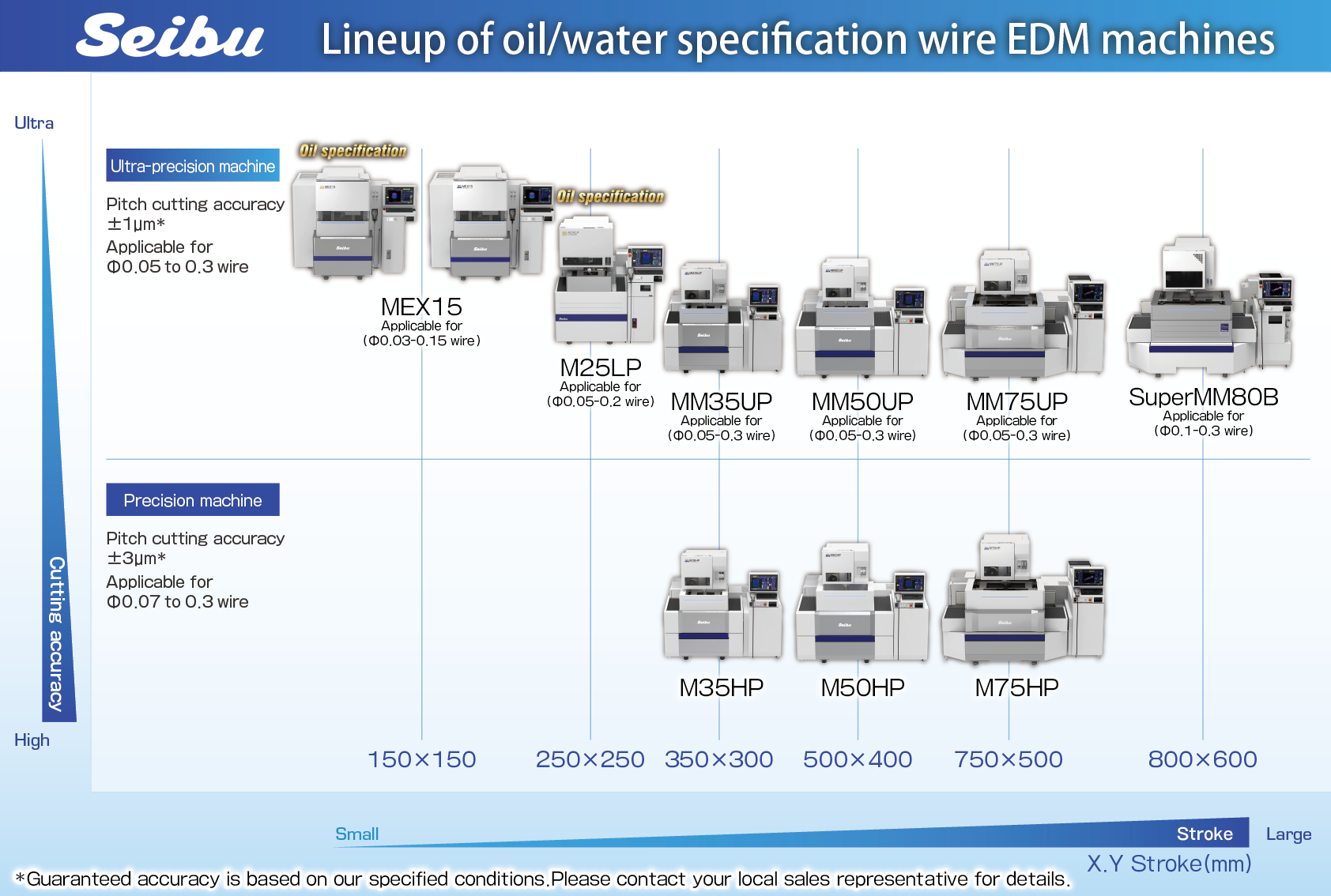

Product Information
Water Specification Wire EDM
Ultra-precision machine
800×600
| Standard Specifications |
SuperMM80B |
|---|---|
| Max. workpiece dimensions | 1,000×800×150mm |
| Max. workpiece weight | 600kg |
| Axis travel range | 800×600×230mm |
| Automatic wire feeding device | AWF-4 equipped as standard |
| U-V axis travel | ±60×±60mm |
| Max. taper angle | ±10°/work thickness150mm (±45°/40mm:Option) |
| Dimensions | 2,380×2,400×2,155mm |
| Weight | 6,300kg |
| Wire diameter | Φ0.2mm is standard. Φ0.1～0.3mm |
| Control device | Smart NC |
| Power Supply | MPSC-20 |
| Filtration device | MF1100BD |

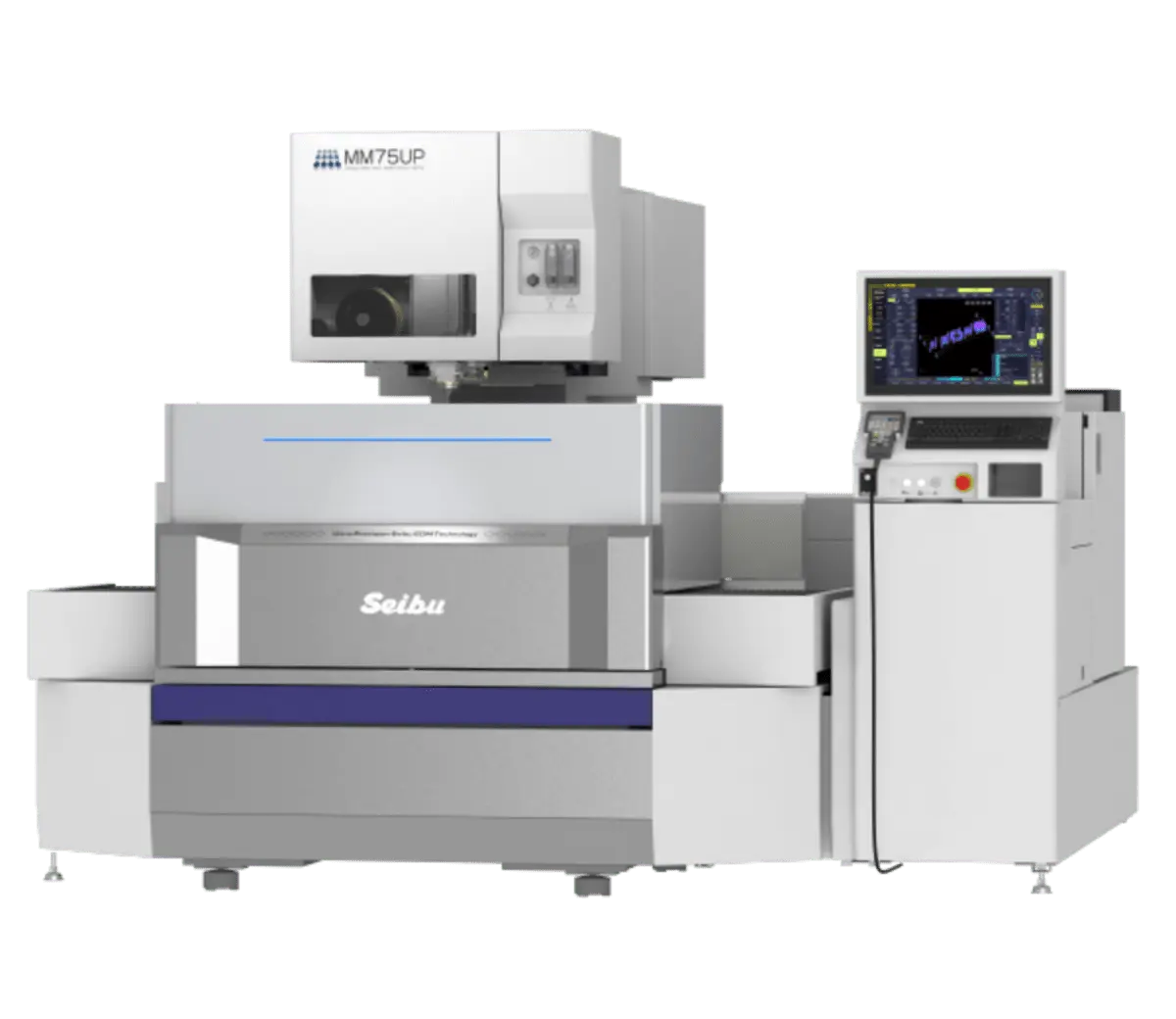

High precision machine
750×500
| Standard Specifications |
MM75B |
|---|---|
| Max. workpiece dimensions | 900×700×220(270*1)mm |
| Max. workpiece weight | 1,000kg |
| Axis travel range | 750×500×280mm |
| Automatic wire feeding device | AWF-4 equipped as standard |
| U-V axis travel | ±60×±60mm |
| Max. taper angle | ±10°/work thickness270mm (±45°/40mm:Option) |
| Dimensions | 2,280×2,200×2,155mm |
| Weight | 5,100kg |
| Wire diameter | Φ0.2mm is standard. Φ0.05～0.3mm |
| Control device | Smart NC |
| Power Supply | MPSC-20 |
| Filtration device | MF1100BD |
- ※1Flush cutting available for work 220 to 270mm high.

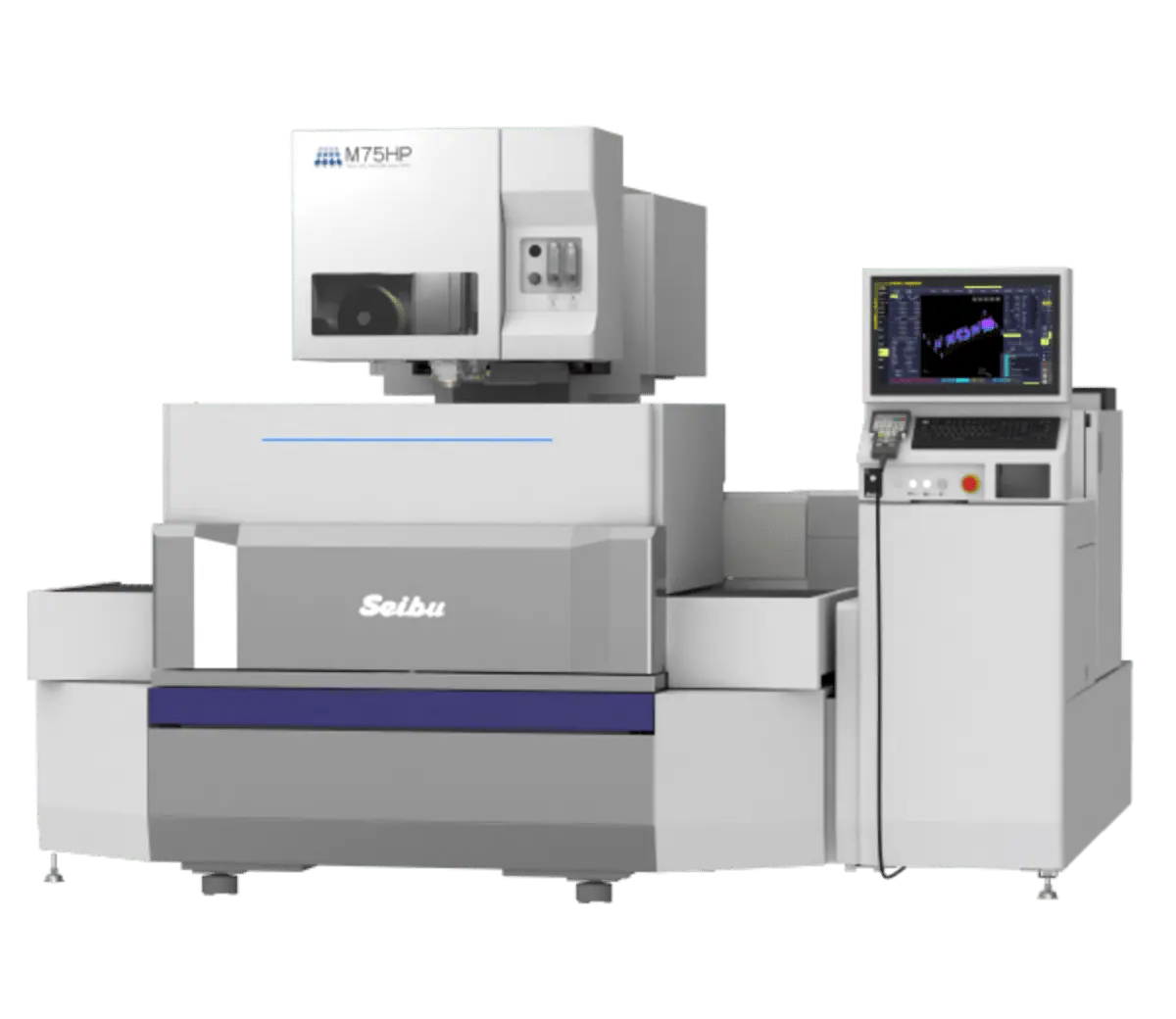

Precision machine
750×500
| Standard Specifications |
M75B |
|---|---|
| Max. workpiece dimensions | 900×700×250(300*1)mm |
| Max. workpiece weight | 1,000kg |
| Axis travel range | 750×500×310mm |
| Automatic wire feeding device | AWF-4 equipped as standard |
| U-V axis travel | ±60×±60mm |
| Max. taper angle | ±10°/work thickness300mm (±45°/40mm:Option) |
| Dimensions | 2,280×2,200×2,155mm |
| Weight | 5,100kg |
| Wire diameter | Φ0.2mm is standard. Φ0.07～0.3mm |
| Control device | Smart NC |
| Power Supply | MPSC-20 |
| Filtration device | MF1100BD |
- ※1Flush cutting available for work 250 to 300mm.
Ultra-precision machine
500×400
| Standard Specifications |
MM50UP |
|---|---|
| Max. workpiece dimensions | 850×730×300mm |
| Max. workpiece weight | 800kg |
| Axis travel range | 500×400×310mm |
| U-V axis travel | ±60×±60mm |
| Max. taper angle | ±10°/work thickness300mm (±45°/40mm:Option) |
| Dimensions | 1,915×2,260×2,035mm |
| Weight | 3,300kg |
| Wire diameter | Φ0.2mm is standard. Φ0.05～0.3mm |
| Control device | Smart NC |
| Power Supply | MPSC-20 |
| Filtration device | MF50-01 |
Precision machine
500×400
| Standard Specifications |
M50HP |
|---|---|
| Max. workpiece dimensions | 850×730×300mm |
| Max. workpiece weight | 800kg |
| Axis travel range | 500×400×310mm |
| U-V axis travel | ±60×±60mm |
| Max. taper angle | ±10°/work thickness300mm (±45°/40mm:Option) |
| Dimensions | 1,915×2,260×2,035mm |
| Weight | 3,300kg |
| Wire diameter | Φ0.2mm is standard. Φ0.07～0.3mm |
| Control device | Smart NC |
| Power Supply | MPSC-20 |
| Filtration device | MF50-01 |
Ultra-precision machine
350×300
| Standard Specifications |
MM35UP |
|---|---|
| Max. workpiece dimensions | 700×630×220mm |
| Max. workpiece weight | 350kg |
| Axis travel range | 350×300×230mm |
| U-V axis travel | ±60×±60mm |
| Max. taper angle | ±10°/work thickness220mm (±45°/40mm:Option) |
| Dimensions | 1,640×2,060×1,955mm |
| Weight | 2,700kg |
| Wire diameter | Φ0.2mm is standard. Φ0.05～0.3mm |
| Control device | Smart NC |
| Power Supply | MPSC-20 |
| Filtration device | MF35-01 |
Precision machine
350×300
| Standard Specifications |
M35HP |
|---|---|
| Max. workpiece dimensions | 700×630×220mm |
| Max. workpiece weight | 350kg |
| Axis travel range | 350×300×230mm |
| U-V axis travel | ±60×±60mm |
| Max. taper angle | ±10°/work thickness220mm (±45°/40mm:Option) |
| Dimensions | 1,640×2,060×1,955mm |
| Weight | 2,700kg |
| Wire diameter | Φ0.2mm is standard. Φ0.07～0.3mm |
| Control device | Smart NC |
| Power Supply | MPSC-20 |
| Filtration device | MF35-01 |
Ultra-precision machine
150×150
| Standard Specifications |
MEX15 |
|---|---|
| Max. workpiece dimensions | 180×165×60mm※1 |
| Max. workpiece weight | 12kg※2 |
| Axis travel range | 150×150×120mm |
| U-V axis travel | ±20×±20mm |
| Max. taper angle | ±10°/thickness60mm Conical cutting |
| Dimensions | 1,830×1,770×1,855mm |
| Weight | 3,250kg |
| Wire diameter | Φ0.1mm is standard. Φ0.03～0.15mm |
| Control device | Smart NC |
| Power Supply | MPSC-20 |
| Filtration device | MF300 |
- ※1Should not exceed the max. workpiece weight.
- ※2Including the weight of jig or the like
Oil Specification Wire EDM
Ultra-precision machine
150×150
| Standard Specifications |
MEX15 |
|---|---|
| Max. workpiece dimensions | 180×165×60mm※1 |
| Max. workpiece weight | 12kg※2 |
| Axis travel range | 150×150×120mm |
| U-V axis travel | ±20×±20mm |
| Max. taper angle | ±10°/thickness60mm Conical cutting |
| Dimensions | 1,830×1,770×1,855mm |
| Weight | 3,250kg |
| Wire diameter | Φ0.1mm is standard. Φ0.03～0.15mm |
| Control device | Smart NC |
| Power Supply | MPSC-20 |
| Filtration device | MF300 |
- ※1Should not exceed the max. workpiece weight.
- ※2Including the weight of jig or the like
Ultra-precision machine
250×250
| Standard Specifications |
M25LP |
|---|---|
| Max. workpiece dimensions | 270×270×100mm |
| Max. workpiece weight | 150kg |
| Axis travel range | 250×250×200mm |
| U-V axis travel | ±35×±35mm |
| Max. taper angle | ±10°/100mm |
| Dimensions | 1,770×2,040×2,018mm |
| Weight | 3,100kg |
| Wire diameter | Φ0.2mm is standard. Φ0.05～0.20mm |
| Control device | Smart NC |
| Power Supply | MPSC-20 |
| Filtration device | MF330 |
Cutting Samples
SMM80B,MM-UP,M-HP
-
Combination cutting
Material SKD11 Wire diameter Φ0.2 Thickness 60mm Surface finish Ra 0.25µm, Rz 2.00µm Cutting time 50 hours
-
Tall thickness taper combination cut
Material SKD11 Wire diameter Φ0.25 Thickness 100mm Surface finish Ra 0.30µm, Rz 2.80µm Cutting time 4 hours Taper angle 10°
MEX15
-
Leadframe cuttingWater processing
Material SKD11 Wire diameter Φ0.03 Thickness 3mm Surface finish Ra 0.10µm, Rz 0.90µm Cutting time 1 hours Shape accuracy ±1µm
-
Comb cuttingOil Processing
Material WC Wire diameter Φ0.03 Thickness 1mm Surface finish Ra 0.10µm, Rz 0.91µm Cutting time 4 hours Shape accuracy ±2µm
